South African R series of weapons information thread (lots of pictures)

gekishibu86

Well-known member
Feedback: 2 / 0 / 0
Joined
Aug 6, 2006
Messages
120

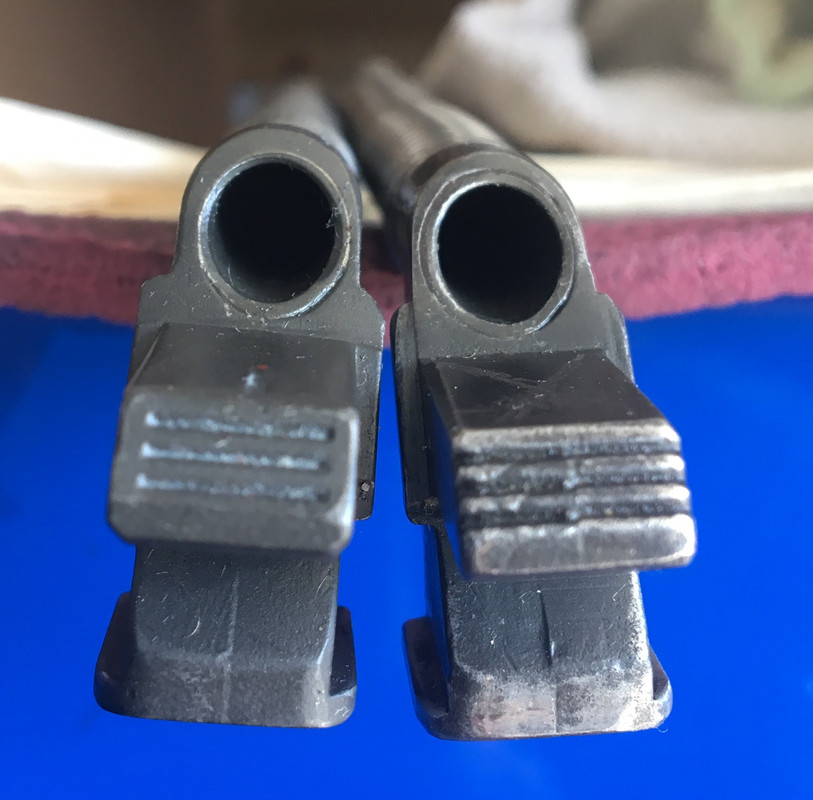

Differences on recoil rod assembly.

Galil on the left has a wider shoulder and machine is different shape. Ends are also machined differently.

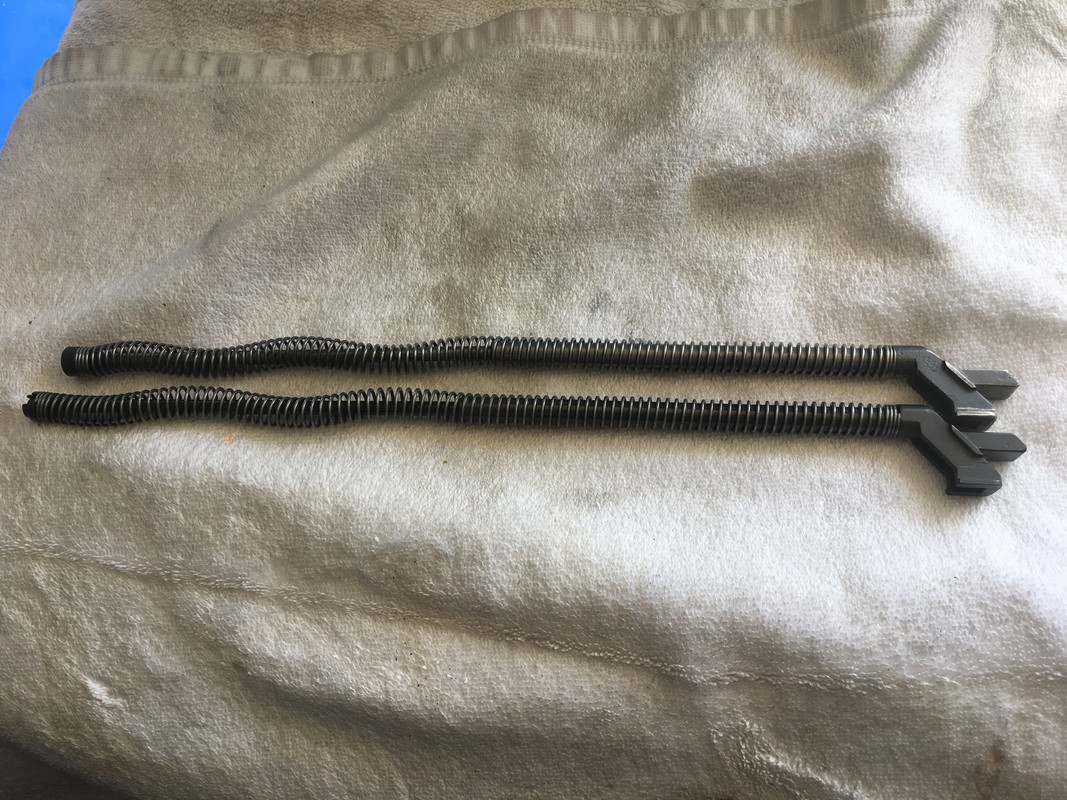

Galil assembly on bottom is significantly longer.

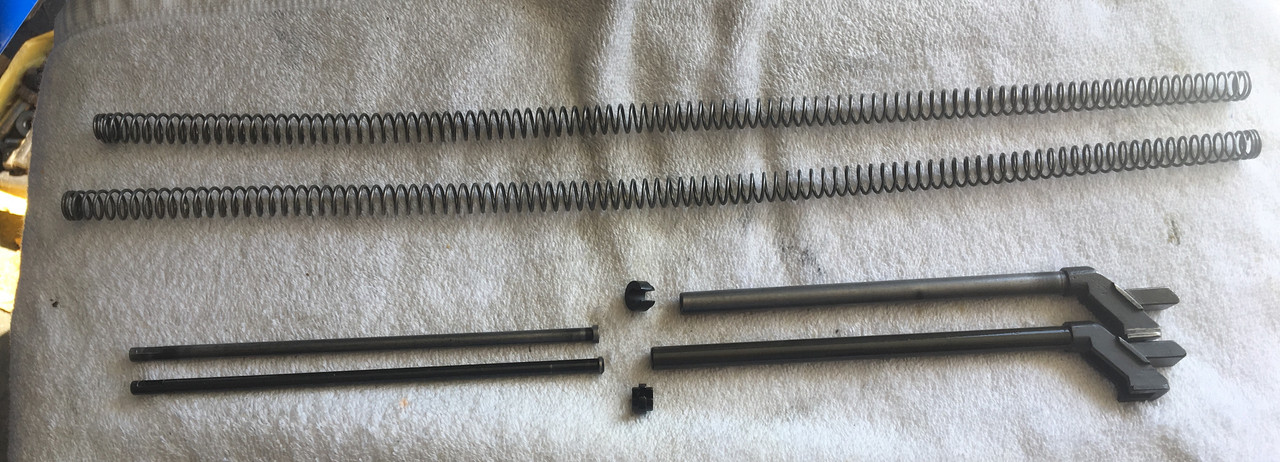

Galil spring and back part of the rod is longer. Galil spring retainer can be installed on both ends, R series only on one end. Galil telescoping rod end is chamfered, R series is squared. Both have the same length.

Feedback: 0 / 0 / 0
Joined
Jun 18, 2013
Messages
19
R-Series pistol grip

I’ve looked at all the grip info on this thread. And looked over many pics elsewhere. I find it very difficult to tell what’s South African when it comes to the grips. “A dull finish” and “flat sides” as opposed to rounded sides are found (to some degree) on 75% of the grips I have. Is there any sure fire way to tell? I know if it’s shiny it’s Not SA. Aside from that I’m very unsure.


gekishibu86

Well-known member
Feedback: 2 / 0 / 0
Joined
Aug 6, 2006
Messages
120
I’ve looked at all the grip info on this thread. And looked over many pics elsewhere. I find it very difficult to tell what’s South African when it comes to the grips. “A dull finish” and “flat sides” as opposed to rounded sides are found (to some degree) on 75% of the grips I have. Is there any sure fire way to tell? I know if it’s shiny it’s Not SA. Aside from that I’m very unsure.

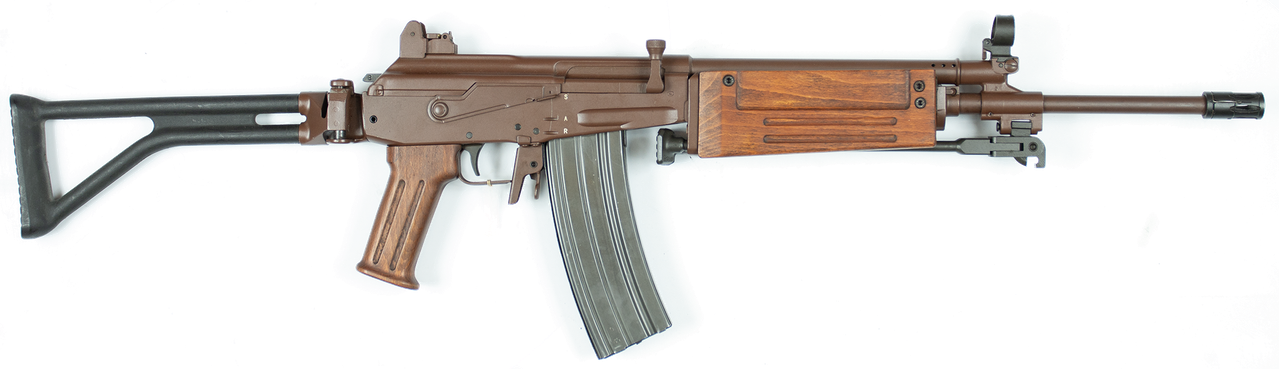

You probably haven’t gone through all the 75 pages, it’s actually been discussed already. Any here’s pics on this thread that can help you distinguish the differences.
a>

a>

a>

a>

Feedback: 0 / 0 / 0
Joined
Jun 18, 2013
Messages
19
75 pages. I have looked over every page more than once. And I’ve seen all the pics. Even the pics that are now missing. And I have many grips in my collection. Still doesn’t seem cut and dried to me. Most people say “not shiny in finish” and and “flat sided” in profile. I have varying degrees of these features on grips in my collection. I’ll have to post pics of some of mine. It doesn’t help that some vendors sand blasted grips to alter the finish.


Cognard

Well-known member
Feedback: 0 / 0 / 0
Joined
Oct 21, 2010
Messages
76
is there a chance you can send me a pic of your rifle as well as the place where the serial is located ?? i am writing a book about AK, sigs , Galils and Vektors ! thank you so much !

Rick


tsmgguy

Well-known member
Feedback: 0 / 0 / 0
Joined
Oct 8, 2004
Messages
72
My Action Arms Galil (Mod. 386, barrel date 4-87) has no bayonet lug and an original wooden handguard without bipod cutout. It looks very R-4. Interestingly, the barrel has the same stamped circle P marking found on the barrel of my Group Industries/Vector FA Uzi. Vector used South African Uzi parts kits demilled in Switzerland in the manufacture of their guns. I understand that the Uzi barrel marking shows manufacture by Littleton Engineering in Pretoria, South Africa. Was there some exchange of Galil parts and assemblies between South Africa and Israel during the time both guns were made, when both economies were under crippling international sanctions?

Last edited:

dubagel

Well-known member
Feedback: 0 / 0 / 0
Joined
Apr 29, 2006
Messages
402
The original batch of SA R4’s were actually made in Israel and the IDF Galil ARM configuration/pattern. The change in handguards, sights, buttstock did not occur till after the initial ones started being produced in SA.


hagar

Well-known member
Feedback: 3 / 0 / 0
Joined
Feb 1, 2009
Messages
391
Location
Columbia, SC
Old thread, but here is a picture of me taken in 1977 in Rhodesia. Smuggled my R1 in and back. My hair was definitely not Sadf regulation, but I was working night shift in the computer center before I left on vacation, and it always grew like a weed :)


Attachments

  • IMG_0004~2.JPG
    323 KB · Views: 6
