internal view

hostile

New member
Feedback: 0 / 0 / 0
Joined
Oct 31, 2020
Messages
2
Hello

Does anyone have one or more pics of the interior of an ac-556 stock please ?

with thanks

Thierry


Offmarksman

UZI Talk Life Member
Feedback: 18 / 0 / 0
Joined
Sep 1, 2010
Messages
798
[/url][/IMG]

Sorry I don’t have one anymore, but here’s an old pic of a butler creek mini-14 one, that was opened up to clear the selector and rocker arm on my old ac556. Hopefully someone will have some more detailed pics for you)


hostile

New member
Feedback: 0 / 0 / 0
Joined
Oct 31, 2020
Messages
2
Thanks

Hello

Thank you so much. This is already a first step.

Good week


KickStand

UZI Talk Life Member
Feedback: 17 / 0 / 0
Joined
Jan 2, 2018
Messages
969
Location
USA

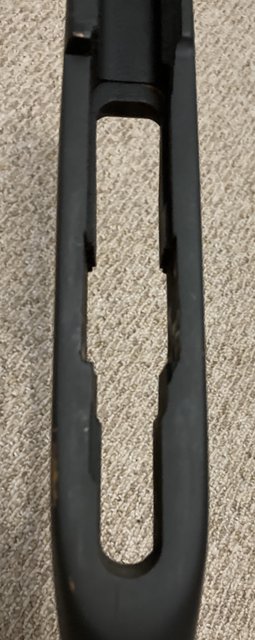

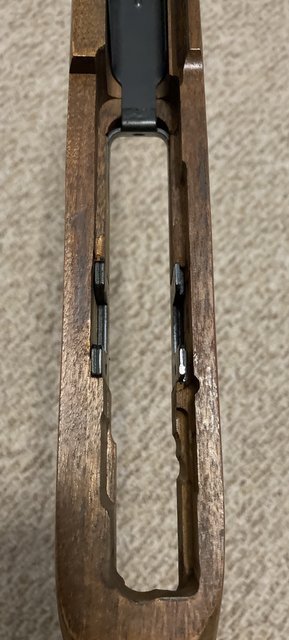

The wood stock is for an ac-556 and the black stock is for a mini-14. Note the black stock is missing the metal hardware.







ScottinTexas

UZI Talk Life Member
Feedback: 14 / 0 / 0
Joined
Mar 22, 2015
Messages
2,934
Location
Near Houston, TX
Doing this with a Dremel is a very laborious process that provides you the thrill of "dang that sure is tight is it just the trigger assembly camming in or am I about to break a select fire part if I keep going" multiple times.


Openspaces

Member
Feedback: 0 / 0 / 0
Joined
Jun 26, 2015
Messages
19
Doing this with a Dremel is a very laborious process that provides you the thrill of "dang that sure is tight is it just the trigger assembly camming in or am I about to break a select fire part if I keep going" multiple times.

This is spot on. I dremeled ATI folder. Got it to fit pretty well but in the 3rd hour apparently got impatient and created a bigger gap than I wanted. Ended up selling it without ever using it. Not to mention the stock felt flimsy and not worthy of having a receiver mounted in it. Good luck and take your time.
